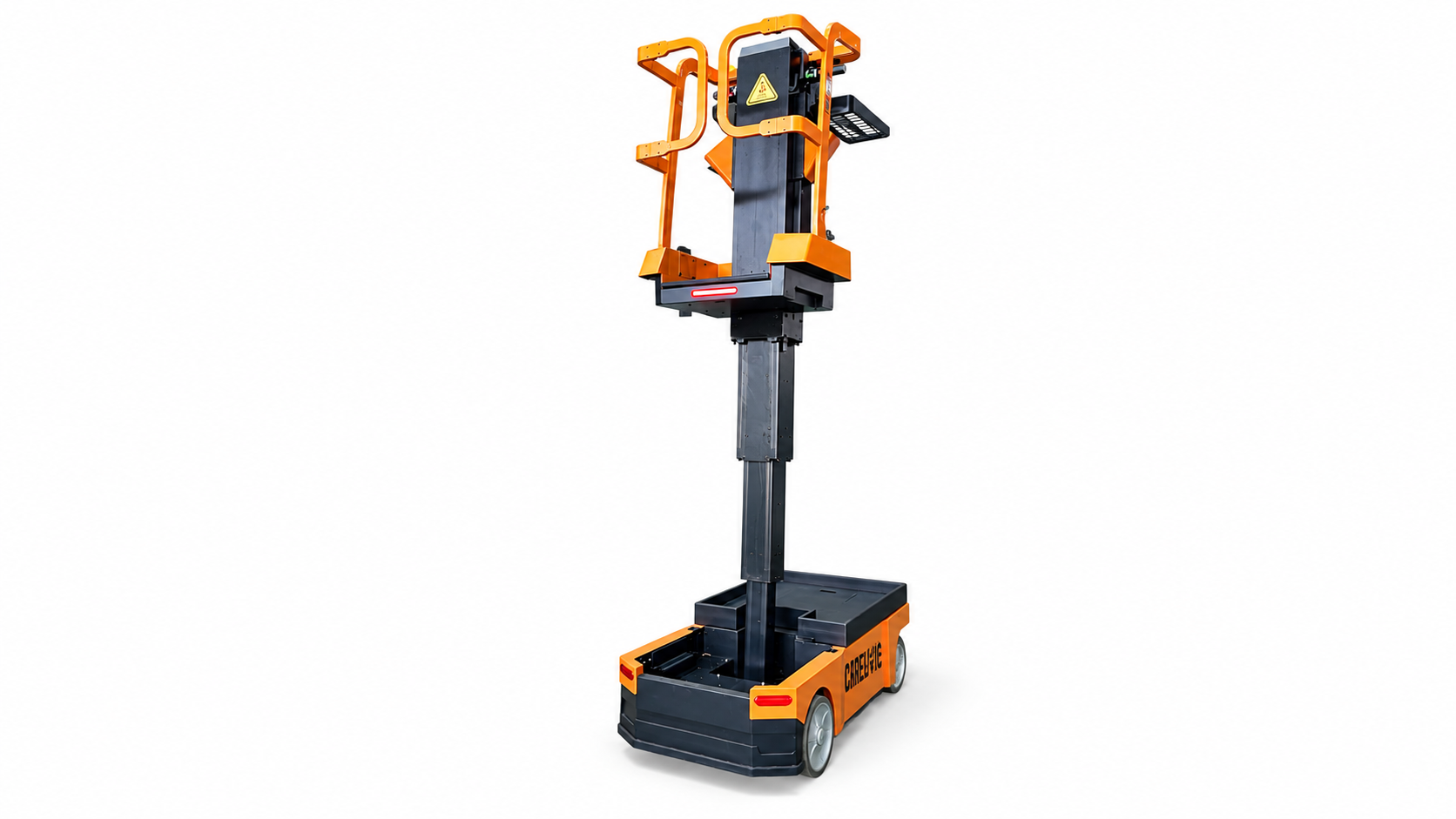

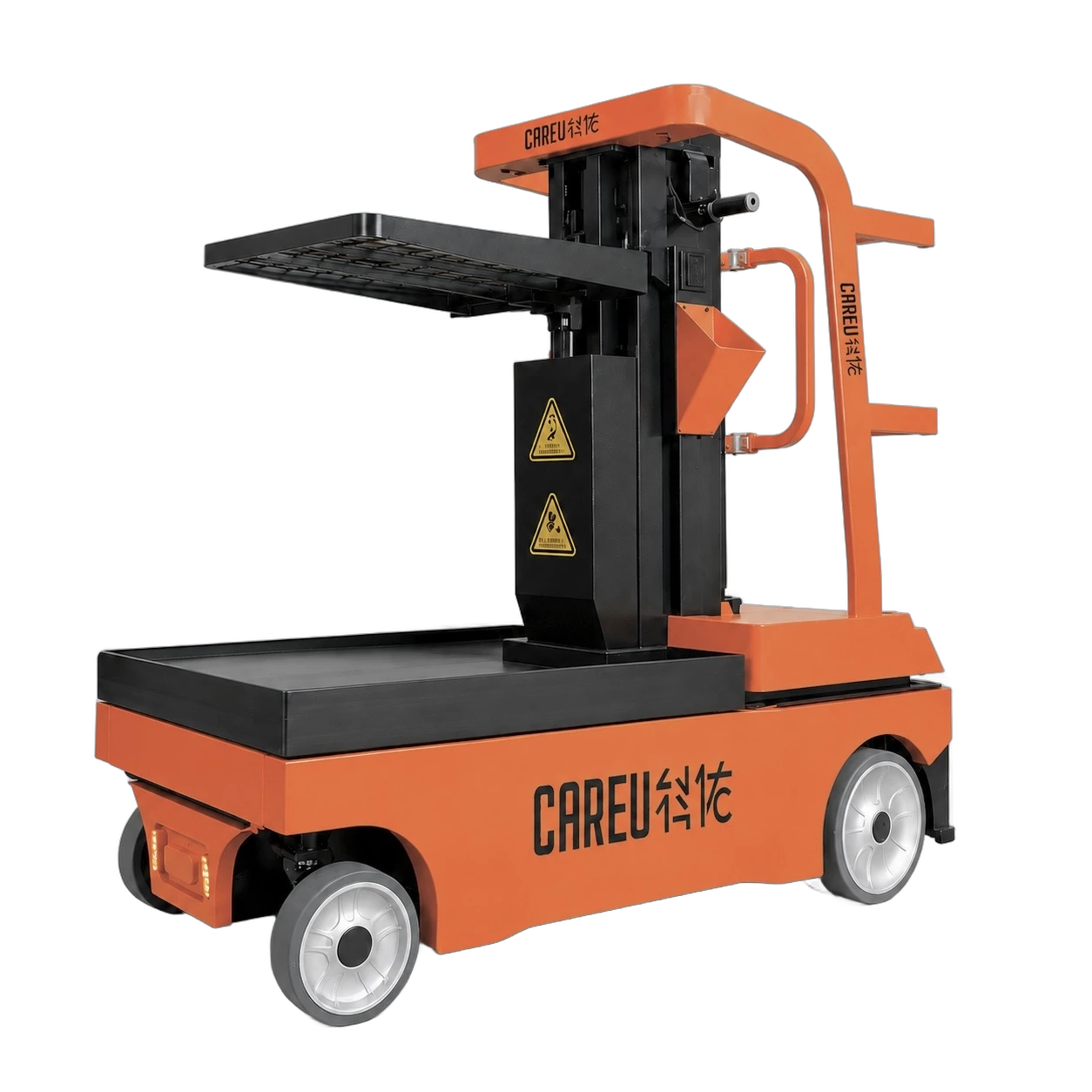

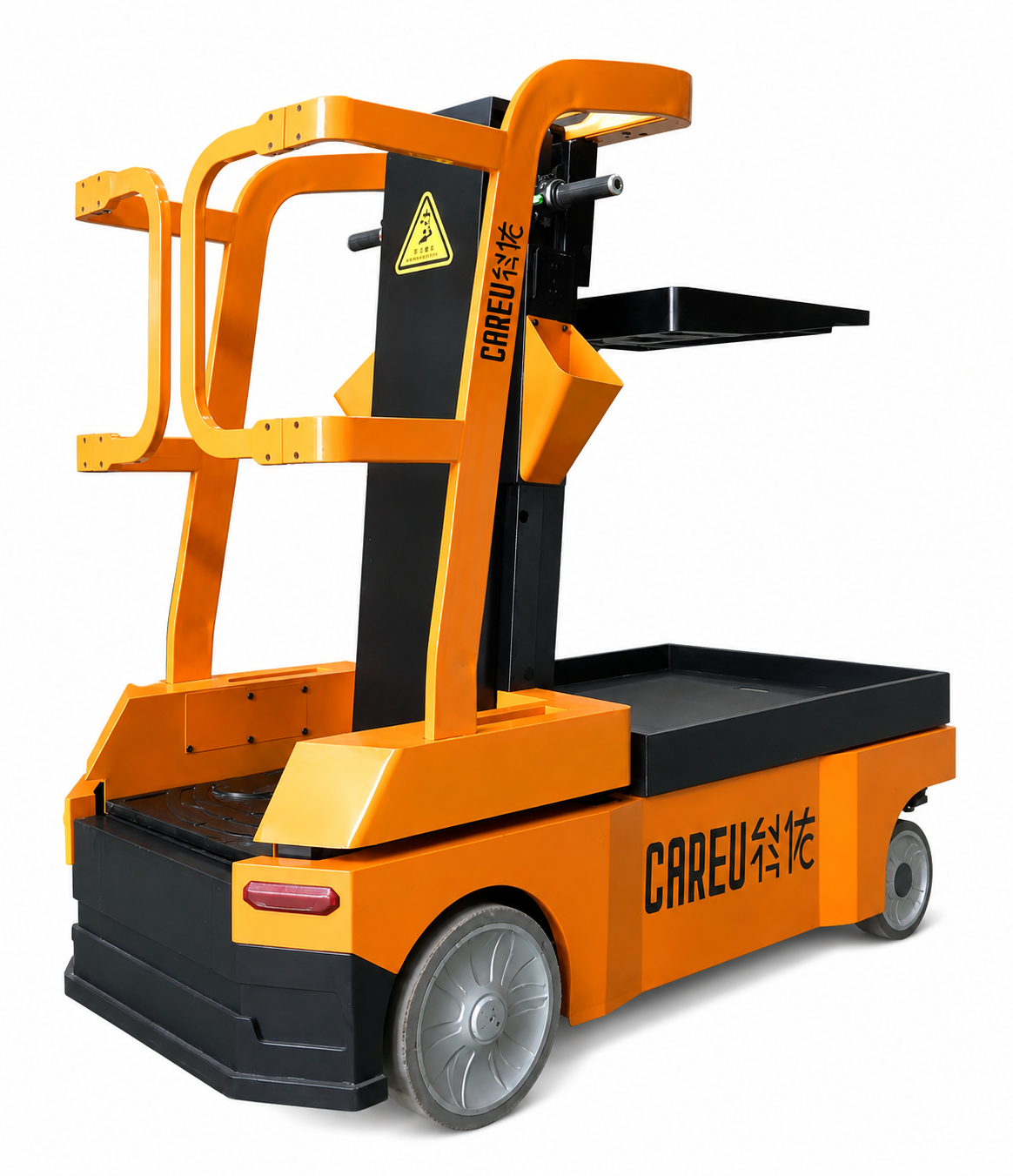

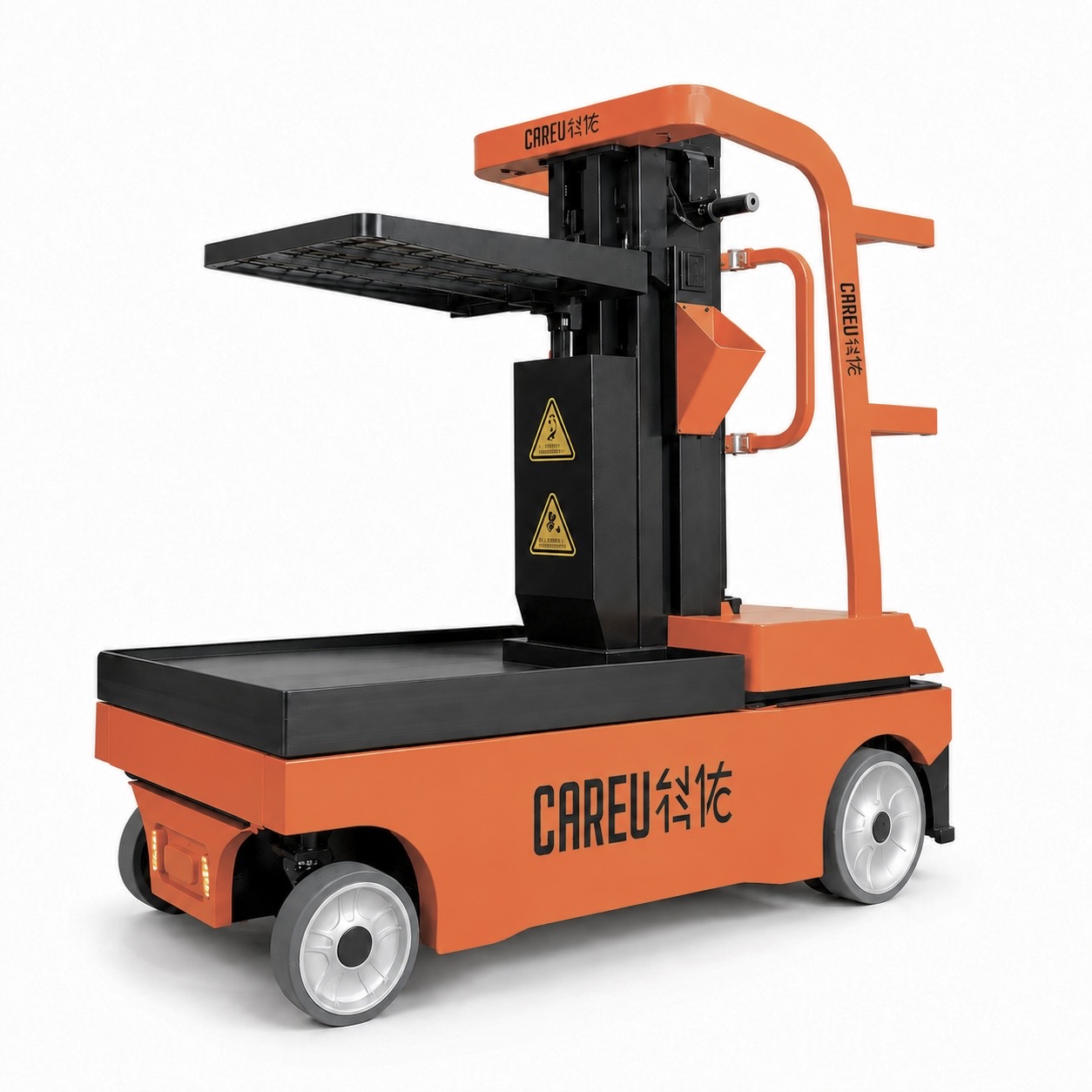

K30 Compact Order Picker紧凑型拣选车
Agile, narrow-aisle ready. Our best-selling workhorse.高效灵活窄通道作业，畅销主力型号。
Product Detail产品详情
Agile, narrow-aisle ready. Our best-selling workhorse.高效灵活窄通道作业，畅销主力型号。
Technical Specifications技术参数
| Platform Height平台离地高度 | 3 m |
| Working Height作业高度 | 5 m |
| Overall Dimensions整车尺寸 | 1630 × 790 × 1540 mm |
| Turning Radius转弯半径 | 2450 mm |
| Machine Weight整车重量 | 520 kg |
| Rated Load Capacity额定载重 | 360 kg |

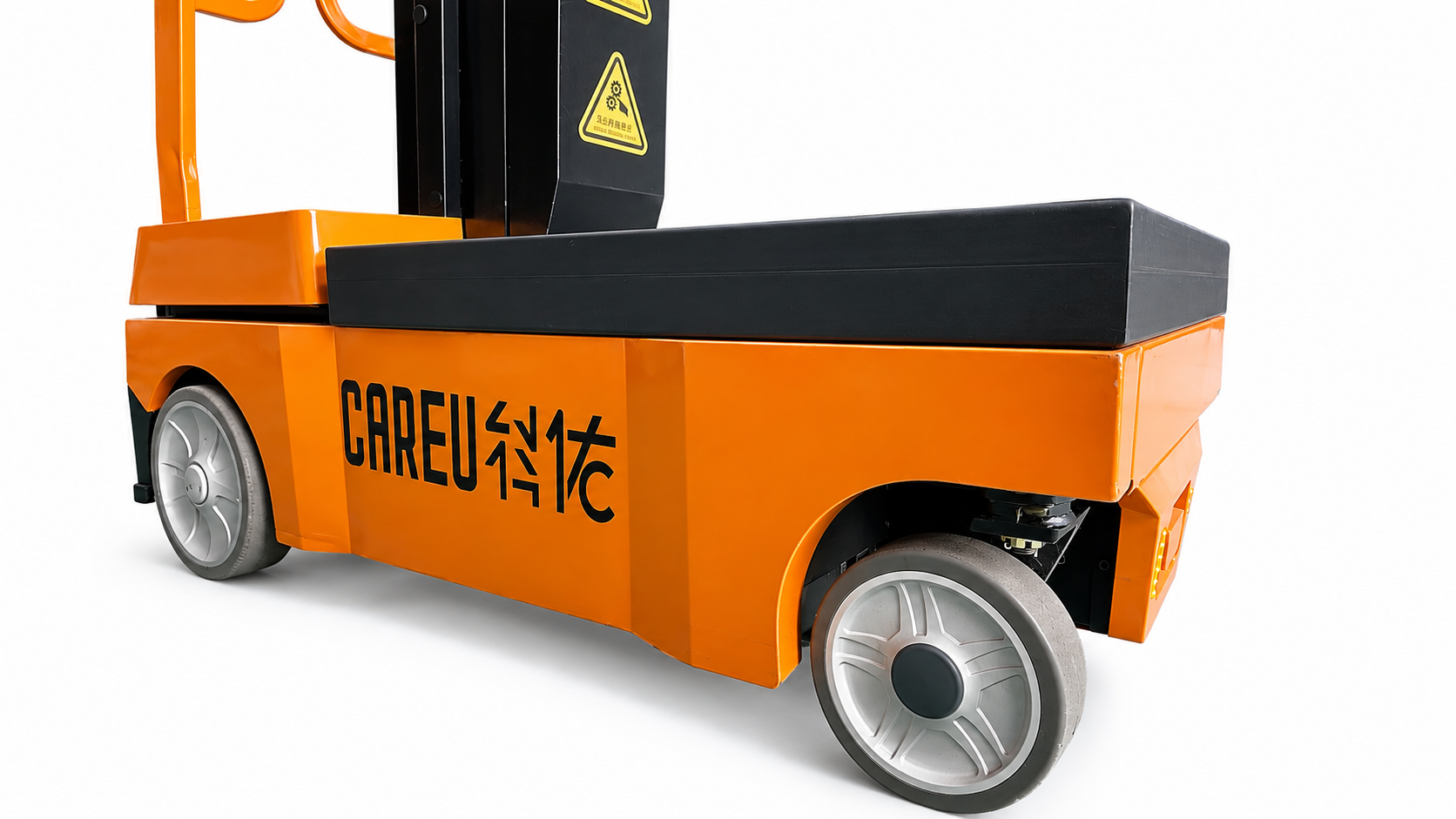

| Chassis Tray Load底盘托盘载重 | 200 kg |
| Battery (Standard)电池（标配） | 48V 100Ah LiFePO₄ · 4–6 h |
| Battery (Optional)电池（选配） | 200Ah · 8–10 h |
| Charging Time充电时长 | 4 h |
| Max Operating Force最大水平操作力 | 300 N |
| Gradeability最大爬坡 | 13% no-load / 8% full-load空载13% / 满载8% |
| Occupants载人数 | 1 person1人 |
Key Advantages核心卖点
Drive + lift simultaneously, one operator does the work of two.行驶升降同步，一人顶两人。
Proven design trusted across warehouses.成熟设计，仓库广泛使用。
Upgrade to unmanned picking with AGV navigation.加装 AGV 导航即变无人拣货车。

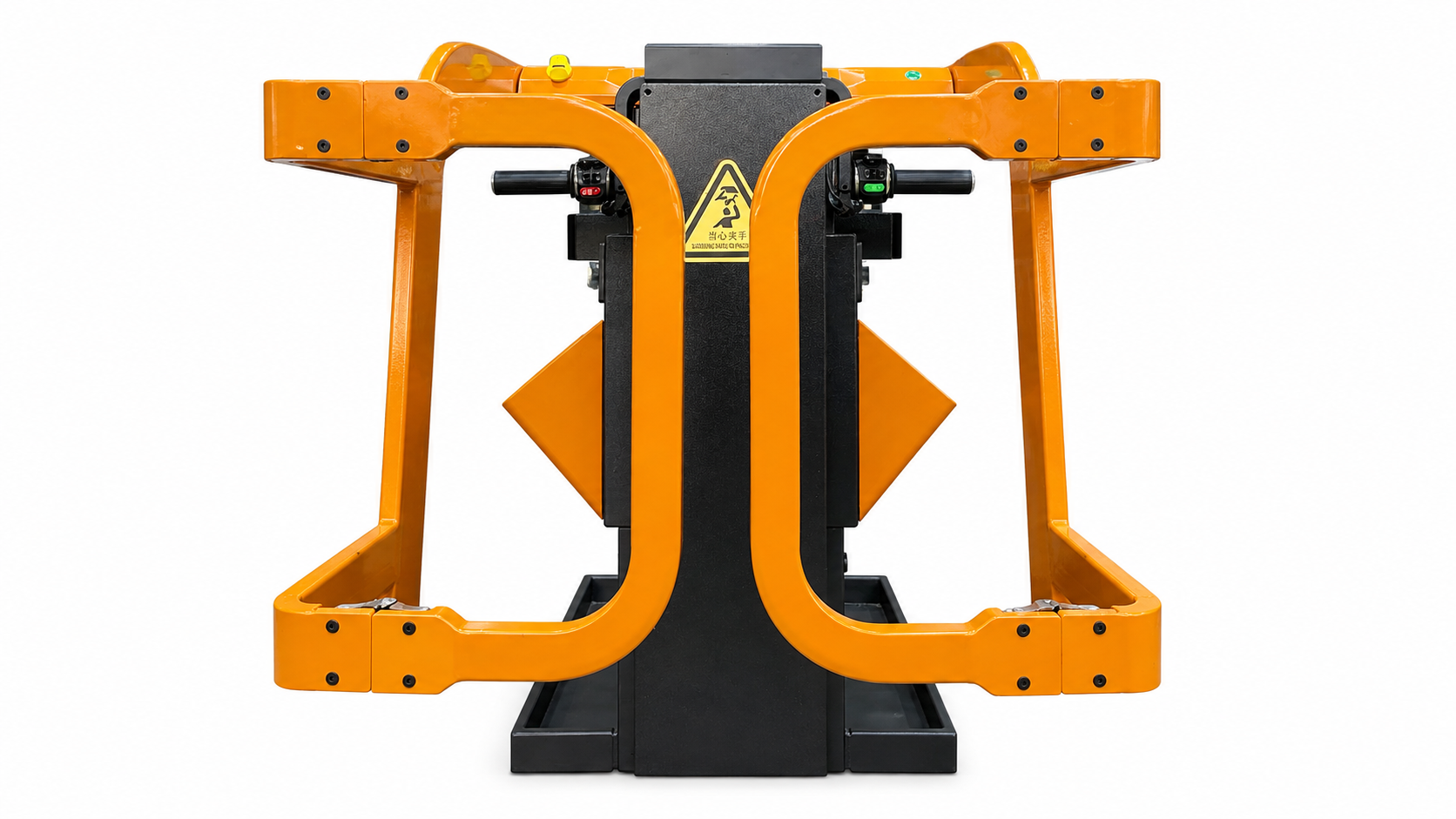

E-bike style handlebar controls.电动自行车式把手操控。
Get a Quote获取报价
Tell us your working height, load, and environment. We'll recommend the right configuration.告诉我们高度、载重和作业环境，帮您配置合适方案。
